How to Reduce Energy Waste Using Smart Facades: The Definitive Guide

The modern building envelope is no longer a static shield but an active participant in a building’s metabolic processes. For decades, architecture relied on the “brute force” method of climate control: thick insulation and massive HVAC systems designed to overpower the external environment. However, as global energy standards tighten and the carbon footprint of the built environment undergoes intense scrutiny, the limitations of static envelopes have become glaringly apparent. A window that is optimized for a cloudy winter morning becomes a liability during a clear summer afternoon, leading to a perpetual cycle of thermal inefficiency.

Smart facades represent a paradigm shift, transforming the building skin into a selective filter that regulates the flow of energy. By integrating sensors, actuators, and advanced materials, these systems can modulate light, heat, and ventilation in real-time. This responsiveness is the cornerstone of high-performance architecture, yet its implementation is fraught with technical complexity. The challenge lies not just in the hardware, but in the sophisticated orchestration required to ensure that the facade’s actions actually result in net energy gains rather than simply shifting the load to other systems.

At its core, the quest for efficiency in the building skin is a battle against entropy. Every joule of heat that enters a building unnecessarily must be mechanically removed, often at a significant energy penalty. This article explores the multifaceted methodologies required to master this regulation. We will move beyond the superficial “green” marketing to examine the thermodynamic principles, data-driven frameworks, and rigorous governance protocols necessary to achieve genuine, long-term operational sustainability.

Understanding “how to reduce energy waste using smart facades.”

To truly grasp how to reduce energy waste using smart facades, one must look past the mechanical novelty of moving parts. The fundamental goal is the minimization of “exergy” destruction—ensuring that energy is used at its highest potential and only when necessary. A common misunderstanding is that a smart facade is merely an automated blind system. In reality, it is a complex interface that must balance conflicting requirements: maximizing natural daylight to reduce lighting loads while simultaneously blocking solar infrared radiation to prevent overheating.

One of the primary oversimplification risks in this field is the reliance on “set-and-forget” automation. If a facade is programmed to close louvers based solely on outdoor temperature, it may ignore the fact that the building’s internal heat gains (from computers and people) actually require some solar cooling via natural ventilation, even on a warm day. True energy reduction requires a holistic logic that treats the facade as a component of the Building Management System (BMS), not an isolated feature.

Furthermore, the “waste” in energy systems often occurs in the gaps between subsystems. For example, a smart facade might tint its windows to reduce glare, but if the internal lighting system does not have photosensors to dim the LED arrays accordingly, the energy spent on the tinting mechanism is essentially wasted, and the total electricity consumption might actually increase. The management of these systems requires an analytical approach that views the building as a single, integrated thermodynamic engine.

The Evolution of Responsive Skins: From Glass Boxes to Active Envelopes

The history of the facade is a trajectory toward increasing transparency and decreasing thermal mass. The mid-20th-century obsession with the “glass box” created a legacy of buildings that functioned as greenhouses, requiring astronomical amounts of energy to remain habitable. The energy crises of the 1970s sparked the first serious inquiries into double-skin facades and reflective coatings, but these remained largely passive and unresponsive to the fluctuating rhythms of the day.

The current era of “active” envelopes is defined by the marriage of material science and digital control. We have moved from simple solar-tracking louvers to electrochromic glass that changes molecular structure in response to a low-voltage charge. This systemic evolution is driven by the need for “Net Zero” operational profiles. However, the legacy of the static envelope still haunts modern construction; many designers still treat the facade as an aesthetic choice first and a thermal machine second, a hierarchy that is incompatible with true energy optimization.

Conceptual Frameworks and Mental Models

Navigating the complexities of energy waste reduction requires specific frameworks to organize decision-making:

1. The “Passive-First” Framework: This model posits that a smart facade should only engage its active components when the passive properties of the building (mass, orientation, and fixed shading) have reached their limit. Efficiency is maximized when the “smart” features are used for fine-tuning rather than fundamental climate correction.

2. The “Information Proxy” Model: In this model, the facade is viewed as a giant sensor. The data it collects on wind speed, solar angle, and air quality is used as a proxy to predict the building’s future energy needs, allowing for “predictive pre-cooling” or “thermal storage” maneuvers.

3. The “Hierarchy of Loads” Framework: Decisions are made based on which energy load is most expensive to satisfy at any given moment. During peak utility pricing, the facade might prioritize heat rejection above all else, even if it means using more artificial light, because the cost of running chillers outweighs the cost of LEDs.

Key Categories of Smart Facade Technologies

The diversity of “smart” interventions allows for tailored responses to specific climates, but each comes with inherent trade-offs.

Technology Category	Mechanism	Primary Benefit	Significant Trade-off
Electrochromic (EC) Glass	Ion-transfer in thin-film coatings	Precision control of light/heat without moving parts	High initial cost; slow transition times

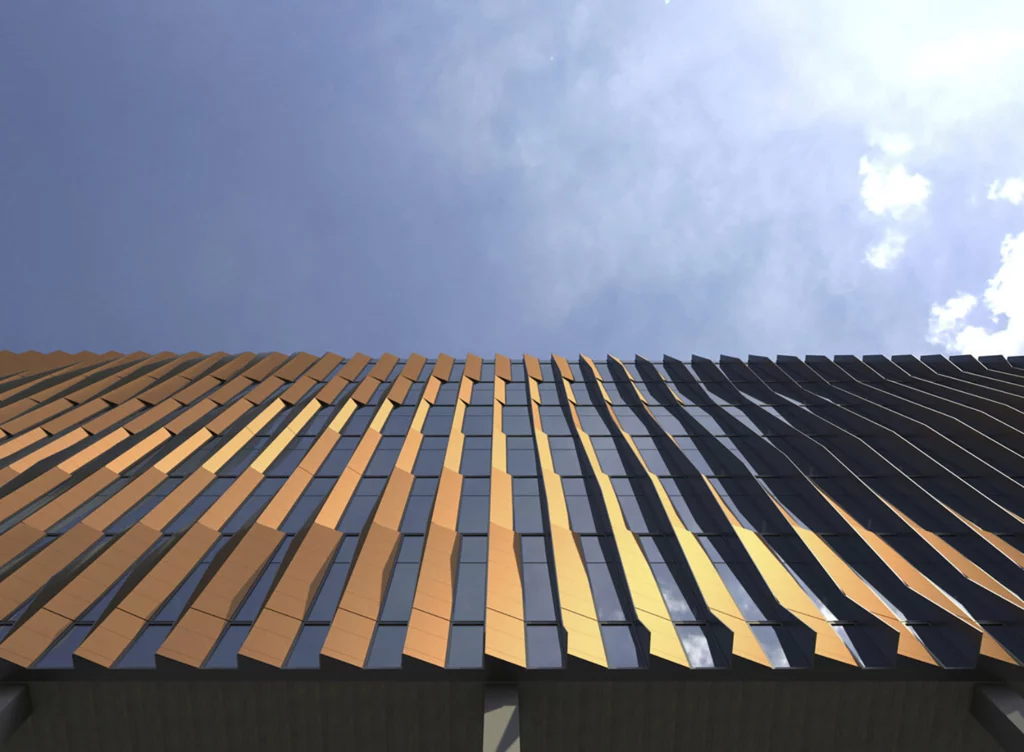

Kinetic Louvers	Mechanical actuators and solar tracking	Maximum external heat rejection	High mechanical maintenance; visual distraction
Double Skin Facades (DSF)	Controlled air cavity between glass layers	Thermal buffering and natural ventilation	Loss of usable floor area; fire safety complexity
Phase Change Materials (PCM)	Salt or wax layers that melt/solidify	Passive thermal storage in a slim profile	Limited “charge” capacity; weight considerations
Automated Natural Vent	Actuated windows/dampers	Reduced cooling and fan energy	Security risks; acoustic pollution ingress
BIPV (Integrated Solar)	Solar cells embedded in the facade	Active energy generation	Lower efficiency than rooftop; complex wiring

Decision Logic for Implementation

The selection process should be dictated by “Climate Archetypes.” For instance, in a cooling-dominated climate (e.g., Singapore), the priority is external solar shading and infrared rejection. In a temperate climate (e.g., London), the logic shifts toward a “seasonal chameleon” approach—maximizing solar gain in winter while facilitating night-purge cooling in summer.

Detailed Real-World Scenarios

Scenario 1: The “Cloud Shadow” Latency

In an office building equipped with electrochromic glass, a rapidly changing sky with intermittent clouds causes the windows to constantly cycle between dark and clear.

• Constraint: The glass takes 10–15 minutes to fully transition.

• Failure Mode: By the time the glass clears for a cloud, the sun has returned, but the interior is dark, causing the lights to switch to full brightness.

• Outcome: Energy waste increases due to lighting/tinting misalignment.

• Fix: Implementation of “Predictive Sky Mapping” via weather-feed integration to keep the glass in a middle state during volatile weather.

Scenario 2: The “Stack Effect” Overload

A high-rise utilizes a double-skin facade for natural ventilation. During a summer day, the vents at the top fail to open due to a mechanical jam.

• Second-Order Effect: The air cavity becomes a “solar chimney” that traps heat, skyrocketing the temperature of the inner glass pane to 110°F (43°C).

• Result: The HVAC system works 40% harder than it would have with a simple single-skin wall.

Scenario 3: Successful Night Purge in an Arid Climate

A museum in a desert climate uses automated dampers that open at 3:00 AM when the external temperature drops below 70°F (21°C).

• Decision Point: The system uses the building’s exposed concrete core as a “coolth” battery.

• Outcome: The chillers do not need to engage until 1:00 PM the following day, drastically reducing peak-demand charges.

Planning, Cost, and Resource Dynamics

The economic argument for smart facades must move beyond simple “payback periods” to include “Life Cycle Value.” The direct costs are often 20–50% higher than traditional curtain walls, but the indirect savings are substantial.

Cost Element	Range (per m²)	Impact on Energy Waste
Active Shading/Kinetic Hardware	$400 – $1,200	High (Rejects heat before it enters)
Sensors & Integration (BMS)	$50 – $150	Critical (Coordinates all energy use)
Maintenance & Commissioning	$10 – $30 (annual)	Essential (Prevents “drift” into inefficiency)
HVAC Downsizing Credit	($100 – $300)	Immediate (Capital cost offset)

Opportunity Cost: Failing to invest in a smart envelope often locks a building into a high-OpEx trajectory for 30+ years. In a carbon-taxed economy, the “cost of doing nothing” is the most significant financial risk.

Tools, Strategies, and Support Systems

Achieving efficiency requires a specialized ecosystem of tools:

1. Computational Fluid Dynamics (CFD): Essential for modeling how air moves within double-skin cavities to ensure heat is actually exhausted.

2. Solar Path Modeling: Precision mapping of neighboring building shadows to ensure sensors aren’t “blinded” or falsely triggered.

3. Fault Detection and Diagnostics (FDD): Software that identifies when a louver or window isn’t reaching its commanded position.

4. Daylight Autonomy Simulations: Measuring the percentage of the year that a space can be lit solely by the sun.

5. Digital Twin Integration: A real-time virtual model that tests “what-if” scenarios before the physical facade is adjusted.

6. Occupant Override Analytics: Tracking when and why humans override the automation, which often reveals flaws in the energy logic.

Risk Landscape and Failure Modes

Risk in smart facades is often non-linear. A minor sensor drift can lead to a systemic energy collapse.

• The “Hunting” Failure: When a system reacts too quickly to small changes, leading to mechanical wear and excessive energy use by the actuators themselves.

• The “Default-to-Open” Risk: In many systems, a power loss defaults the facade to its most transparent state. If this occurs during a weekend heatwave, the building’s interior may suffer thermal damage.

• Compounding Risks: A failure in the weather station on the roof leads to the facade staying “closed” on a sunny winter day, forcing the heating system to work while the building’s natural heat source—the sun—is blocked.

Governance, Maintenance, and Long-Term Adaptation

A smart facade is a living system that requires perpetual tuning. Governance should follow a “Seasonal Commissioning” cycle:

• Quarterly Audits: Recalibrating light sensors, which naturally degrade or become obscured by dust/pollution.

• Adjustment Triggers: If the HVAC system is renovated or the interior layout is changed (e.g., from open-plan to private offices), the facade’s control logic must be entirely rewritten.

• Layered Maintenance Checklist:

  1. Cleanliness of external sensors (monthly).

  2. Actuator torque testing (biannually).

  3. Firmware and security patching (quarterly).

  4. Visual inspection for “seal fatigue” in double-skin cavities.

Measurement, Tracking, and Evaluation

The only way to confirm how to reduce energy waste using smart facades is through rigorous data.

Leading Indicators:

• Percentage of daytime hours where the Artificial Lighting is at <10% power.

• The Delta-T (temperature difference) between the cavity air and the external air.

Lagging Indicators:

• Annual kWh per square meter (EUI).

• Number of “Comfort Complaint” tickets from tenants.

Documentation Examples:

• Solar Harvest Logs: Quantifying the BTU equivalent of heat rejected by shading.

• Actuator Duty-Cycle Reports: Ensuring motors aren’t running more than their design limit.

Common Misconceptions and Oversimplifications

1. “Automation is Always Better than Human Control.” In reality, humans are excellent at sensing subtle discomfort. The best systems allow for local overrides that the “intelligence” then learns from.

2. “Smart Facades are Only for Hot Climates.” Cold climates benefit immensely from dynamic insulation and solar harvesting.

3. “Glass is the Enemy.” Highly transparent buildings can be efficient if the facade is smart enough to manage the energy flows; it’s the “dumb” glass that is the problem.

4. “The Facade Saves Energy on Its Own.” A facade saves zero energy if the HVAC and Lighting aren’t programmed to step back when the facade does the work.

5. “Maintenance is the Same as a Regular Wall.” It is closer to the maintenance of an airplane wing—precise, mechanical, and safety-critical.

6. “Payback is 3 Years.” Payback is often longer, but the value (tenant retention, carbon compliance) is immediate.

Ethical and Contextual Considerations

There is an “Urban Ethics” to smart facades. A highly reflective smart facade might cool the building it covers, but can create “heat islands” for pedestrians or blind drivers with glare. Furthermore, there is the question of “Visual Privacy.” As facades become more transparent or use cameras for occupancy sensing, the privacy of the building’s inhabitants and the people on the street must be protected through “Privacy by Design” in the software layer.

Conclusion

The pursuit of energy efficiency in the built environment is moving from the era of “insulation” to the era of “interaction.” Reducing waste is no longer about stopping energy flow, but about directing it with surgical precision. Mastering how to reduce energy waste using smart facades requires a deep commitment to technical integration, a refusal to accept oversimplified “green” solutions, and a long-term view of building governance. When these elements align, the building skin stops being a barrier and becomes a catalyst for a truly sustainable, responsive architecture that lives in harmony with its environment.
