Comprehensive Guide to Smart Facade Technology Plans | Strategic Pillar

The modern building envelope has transitioned from a static barrier into a sophisticated, programmable skin. As urban density increases and climate mandates tighten, the facade is no longer merely an aesthetic choice or a weather shield; it has become a primary driver of a building’s metabolic rate. This evolution demands a shift from traditional cladding procurement toward integrated smart facade technology plans that account for the convergence of structural engineering, software logic, and environmental responsiveness.

The complexity of these systems introduces a volatility that the construction industry is only beginning to formalize. A “smart” facade—whether it utilizes electrochromic glazing, automated kinetic louvers, or integrated photovoltaics—is essentially a cyber-physical system. It lives at the intersection of long-lifecycle hardware (glass and aluminum) and short-lifecycle software (control algorithms and sensors). This temporal misalignment is the primary source of failure in projects that lack rigorous foresight and systemic planning.

Achieving a high-performance building skin requires moving beyond the “gadgetry” phase of architecture. It is easy to specify a reactive component; it is difficult to ensure that the component functions harmoniously with the building management system (BMS) over a fifty-year lifespan. This article serves as a definitive reference for developers, architects, and facility managers navigating the layered risks and immense opportunities inherent in modern responsive envelopes.

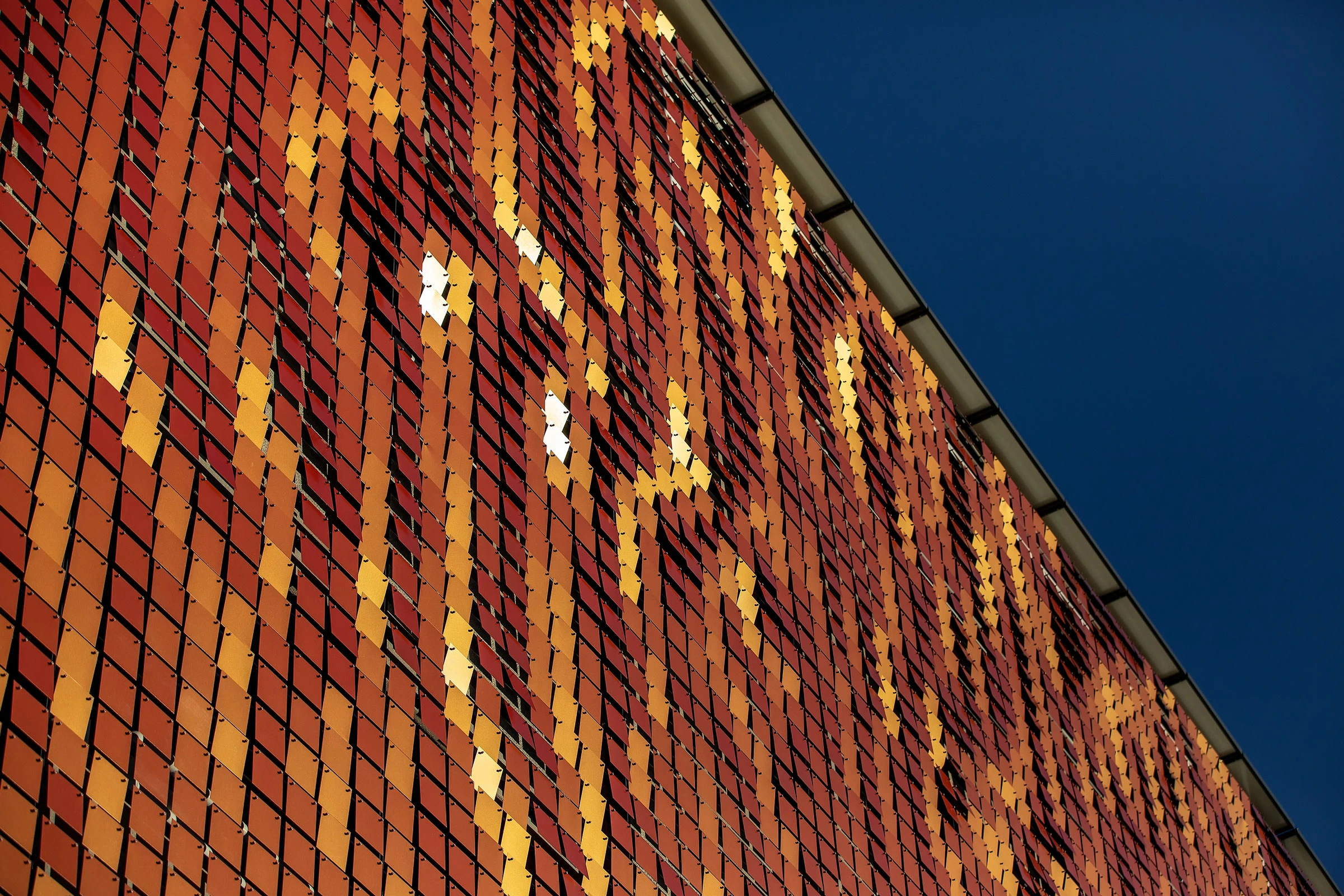

H2: Understanding “smart facade technology plans.”

A significant hurdle in contemporary architectural discourse is the conflation of “smart” with “automated.” To truly understand smart facade technology plans, one must view them as strategic roadmaps rather than just equipment lists. These plans define how a building envelope senses its environment, processes that data, and actuates a response to optimize for thermal comfort, energy generation, or visual clarity.

Common oversimplifications often suggest that a smart facade is simply a product you buy and install. In reality, the integration risk is profound. A plan that fails to account for the “clockspeed” discrepancy—the fact that your facade glass might last 40 years while the sensors controlling its tint may be obsolete in five—is a plan destined for high maintenance costs and “stranded” technology. Integration is not merely a technical task; it is a governance challenge that spans the design, construction, and operational phases.

Perspective is also skewed by the “set and forget” mentality of traditional building. Smart facade technology plans must include provisions for digital decay and firmware management. If the software controlling the solar tracking louvers is proprietary and the vendor ceases operations, the building is left with a very expensive, static ornament. Therefore, a robust plan prioritizes open-source protocols, modularity, and physical fail-safes that allow the building to function even when its “intelligence” is offline.

Contextual Evolution of the Responsive Skin

The history of the building envelope is a trajectory from mass to transparency, and now to intelligence. Historically, facades were “thick”—stone and masonry provided thermal mass and protection. The Modernist era brought the “thin” wall—the glass curtain wall—which prioritized daylight but created massive cooling loads. The current era seeks to reintegrate the performance of the thick wall with the transparency of the thin wall through data-driven responsiveness.

The first generation of smart facades in the late 20th century relied heavily on mechanical complexity. Systems like the Institut du Monde Arabe in Paris utilized mechanical apertures that mimicked the human eye. While visually iconic, the maintenance burden of thousands of small motors proved prohibitive. Today, the industry has shifted toward material intelligence—using chemical reactions in glass or phase-change materials in wall cavities to achieve similar goals with fewer moving parts.

Conceptual Frameworks for Integration

Strategic planning requires mental models that account for the non-linear behavior of smart systems.

• The “Layers of Longevity” Model: This framework separates the building into the Structure (50+ years), the Skin (25 years), the Services (15 years), and the Logic (5 years). A smart facade plan must ensure that the “Logic” layer can be swapped or upgraded without dismantling the “Skin” or “Structure.”

• The Edge-Case Fail-Safe Matrix: Instead of designing for the “average” day, this framework forces designers to plan for the unlikely: grid outages, sensor ghosting, or extreme weather events. If the facade loses power during a heatwave, does it default to its most shaded state?

• The Information-to-Performance Ratio: This model evaluates whether the energy required to run the “smart” features (sensors, motors, processors) is significantly lower than the energy saved by those features. If the delta is marginal, a passive solution is usually superior.

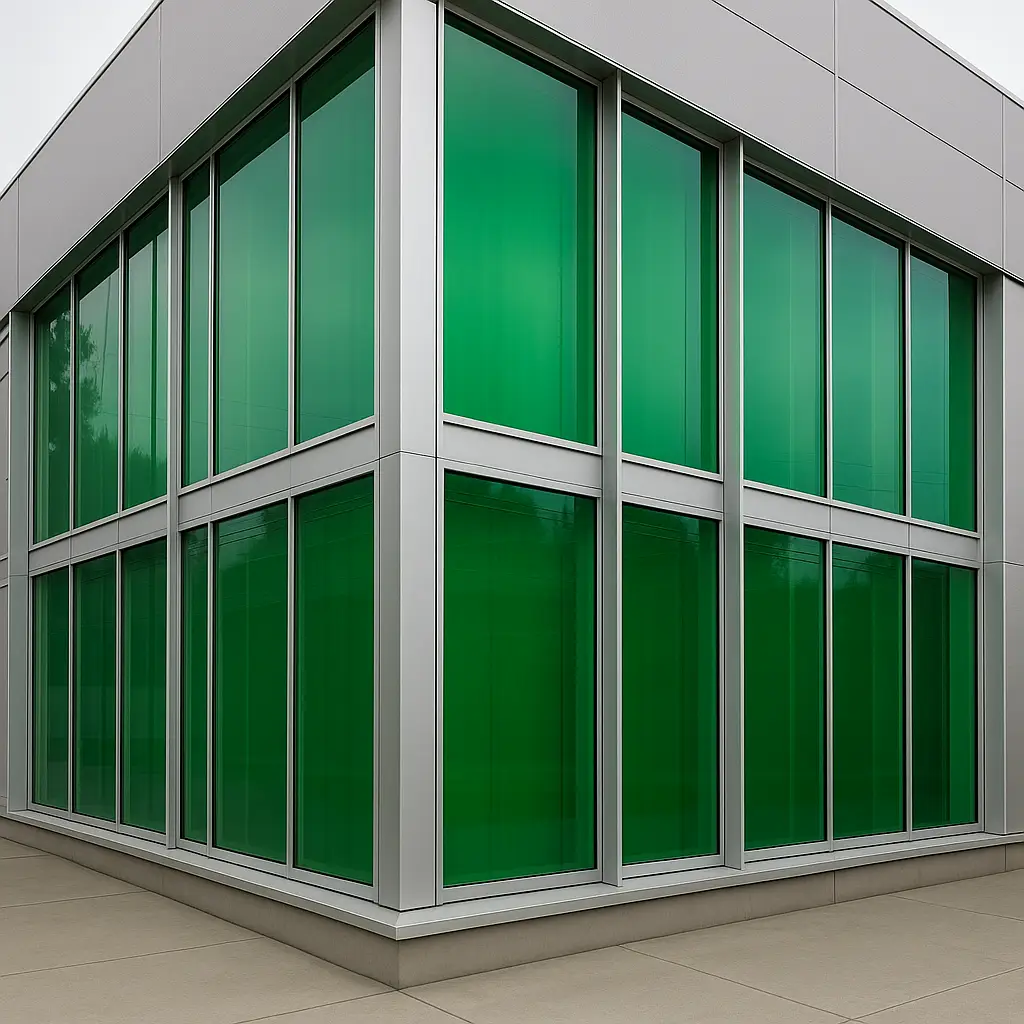

Taxonomy of Smart Facade Technologies

Choosing the right technology involves balancing performance against mechanical risk. No single solution is optimal for all climates or building types.

Categories and Trade-offs

Technology Type	Primary Benefit	Maintenance Risk	Cost Profile
Electrochromic Glass	Heat/Glare control; no moving parts	Low (Electrical)	High CapEx
Automated Louvers	High solar rejection; exterior stop	High (Mechanical)	Moderate CapEx/OpEx
Double Skin (Ventilated)	Acoustic buffer; thermal insulation	Moderate (Access)	Very High CapEx
BIPV (Integrated Solar)	Energy generation; carbon reduction	Moderate (Electrical)	Variable
Phase-Change (PCM)	Thermal mass without weight	Very Low	Moderate CapEx
Hydro-Responsive	Passive cooling; bio-mimetic	Experimental	High Specialist

Decision Logic

A realistic plan begins with a Window-to-Wall Ratio (WWR) audit. If a design features floor-to-ceiling glass, dynamic glazing (electrochromic) is often the only way to meet energy codes without obstructing views. However, for a building with a WWR of 40% or less, automated external shades or BIPV may provide a much faster return on investment.

Detailed Real-World Scenarios

Scenario 1: The Sensor Blind Spot

A commercial high-rise utilized automated louvers programmed to track the sun. The plan relied on a single rooftop weather station. During a specific winter month, the reflection from a neighboring glass tower created a “hot spot” on the 10th floor that the rooftop station couldn’t see. The facade remained in “clear” mode, causing extreme discomfort.

• Lesson: Strategic smart facade technology plans must include distributed sensing or “digital twin” modeling that accounts for the local urban morphology.

Scenario 2: The Firmware Lockdown

A boutique hotel installed a proprietary “smart” double-skin facade. Two years post-occupancy, the vendor’s cloud service was discontinued. The building management could no longer adjust the ventilation cycles, leading to condensation and mold in the facade cavity.

• Lesson: Prioritize local, edge-computing control over cloud-dependent systems to ensure long-term autonomy.

Economics, Costs, and Resource Dynamics

The financial profile of a smart facade is front-heavy, but the true risks lie in the “hidden” middle years of the building’s life.

Range-Based Cost Table (Per Square Foot)

Phase	Direct Cost	Indirect Cost	Variability Factors
Design/BIM	$15 – $40	$10 – $20	Complexity of logic; Specialist fees
Installation	$150 – $400	$30 – $60	Crane access; low-voltage wiring
Operation (Annual)	$2 – $8	$1 – $3	Software licensing; cleaning access
End-of-Life	$50 – $100	$20 – $40	Recyclability of electronics/glass

The Opportunity Cost of Simplicity

Choosing a “dumb” facade to save on initial costs can lead to higher HVAC sizing and ongoing energy expenses. However, the opportunity cost of a failed smart system is even higher: a building that is physically uncomfortable and technologically unserviceable.

Tools, Strategies, and Support Systems

To operationalize a smart facade plan, specific technical support systems are required.

1. Digital Twins: A virtual replica that receives real-time sensor data allows facility managers to “see” a failing motor or a degraded glass pane before it causes a systemic issue.

2. Hardware-in-the-Loop (HiL) Testing: Simulating the facade’s response to weather data in a laboratory environment before field installation.

3. Open Protocols (BACnet/Modbus): Ensuring the facade speaks the same language as the HVAC and lighting systems to prevent siloed operation.

4. Calibration Routines: Automated quarterly “self-tests” where the facade moves through its full range of motion to detect friction or sensor drift.

5. Modular Power Drivers: Placing electrical components in accessible ceiling plenums rather than inside the facade mullions.

6. Cyber-Physical Audits: Regular penetration testing for the building’s facade network to prevent unauthorized access to mechanical systems.

The Risk Landscape: Compounding Failure Modes

Risks in smart facades rarely occur in isolation. They compound. A mechanical glitch in a shading louver might be minor, but if the software doesn’t recognize the jam, it may continue to apply torque to the motor, leading to an electrical fire or total motor burnout.

The Failure Taxonomy:

• Type I (Signal): The sensor is wrong (e.g., covered by dirt/ice).

• Type II (Logic): The sensor is right, but the response is wrong (e.g., closing shades during a fire alarm).

• Type III (Actuation): The response is right, but the hardware is stuck (e.g., frozen hinges).

• Type IV (Network): The components cannot talk to each other (e.g., a broken data link).

Governance and Long-Term Adaptation

A smart facade requires a “living” manual. Traditional O&M (Operations and Maintenance) manuals are static documents that sit in a drawer. Modern smart facade technology plans require a dynamic governance model.

• Monitoring Cycles: Real-time data logging to track the duty cycle of every actuator.

• Adjustment Triggers: If a new building is constructed across the street, the “shadow map” of the smart facade must be re-programmed to account for the new reflection and shading patterns.

• The Layered Checklist:

  • Quarterly: Digital health check; sensor calibration.

  • Annually: Physical inspection of actuators and seals.

  • 5-Year: Software/Firmware refresh; battery replacement for wireless sensors.

Measurement, Tracking, and Evaluation

Success is measured by the delta between predicted performance and actual data.

Leading Indicators (Predictive):

• Actuator motor current draw (rising draw indicates friction).

• Sensor drift rates (variance between neighboring sensors).

• Software latency spikes.

Lagging Indicators (Historical):

• Energy bill reduction compared to baseline.

• Occupant comfort complaints per month.

• Mean Time Between Failures (MTBF) of components.

Documentation Examples:

1. Commissioning Baseline: A record of how the system performed on Day 1 to compare against Year 5.

2. Logic Maps: A visual flow-chart of every “If/Then” statement programmed into the facade controller.

Common Misconceptions and Oversimplifications

• Myth: “Smart facades are maintenance-free.” Correction: They are “maintenance-different.” They trade manual labor for technical monitoring.

• Myth: “Everything should be on the cloud.” Correction: Connectivity is a vulnerability. Local “edge” control is essential for building security.

• Myth: “The architect is responsible for the integration.” Correction: Integration is a cross-disciplinary gap. Unless an “Integration Manager” is specifically hired, it often falls through the cracks.

• Myth: “Smart glass is too slow.” Correction: Modern electrochromic glass has “pre-tint” logic that anticipates solar movement, making the transition feel seamless to occupants.

• Myth: “Proprietary systems are more secure.” Correction: Closed systems often suffer from “security through obscurity” and become unserviceable if the vendor ceases operations.

Ethical and Practical Considerations

There is an ethical dimension to smart facade technology plans: the “Digital Divide” in architecture. As we build increasingly complex envelopes, we risk creating a class of buildings that are impossible to maintain in regions without specialized technical labor. Furthermore, the embodied carbon of the electronics (rare earth metals in sensors and boards) must be weighed against the operational carbon savings. In some low-rise buildings, a high-performance passive facade remains the more ethical choice.

Strategic Synthesis and Conclusion

The planning of a smart facade is an exercise in managing entropy. As we move further into 2026, the building skin will increasingly behave like a biological organ—sensing, reacting, and healing. However, this intelligence is only as valuable as the plan that governs it.

Successful smart facade technology plans prioritize resilience over novelty. They acknowledge that while the sun’s path is predictable, technology is volatile. By focusing on modularity, open communication protocols, and rigorous lifecycle governance, we can create buildings that are not just “smart” for a year, but wise for a century. The goal is a facade that is invisible to the user but indispensable to the planet.
